## Publication # Finding Common Ground: US Presidents State Analysis

Last Updated on July 21, 2023 by Editorial Team

Originally published on Towards AI.

## Introduction

We aim to find any correlation between a US President and its state concerning other Presidents. We use data from different sources to form a dataset that comprises different US presidents and their home states with additional facts about the state. We pull data from multiple sources and combine it to form a comprehensive dataset. We also find the most common state and ultimately plot the results on a live interactive map.

• Python 3.8
• Pandas
• NumPy
• Folium
• Seaborn

## Data Preparation and Preprocessing

We start by preparing the data to comb the datasets from different sources and perform some basic preprocessing on it.

• We change the types
• Removed quotes and spaces
• Changed columns and combined two CSV files
`def load_data(path:str="/"): """ Loads the specified data using the path Args ------- path: str (where president_timelines.csv and president_states.csv reside) Returns -------- The combined dataframe """ df_time = pd.read_csv("president_timelines.csv") df_states = pd.read_csv("president_states.csv") # Setting columns as specified by the dataframe df_time.columns = ["Index", "Name", "Birth", "Death", "TermBegin", "TermEnd"] df_states.columns = ["Name", "Birth State"] president_names = df_time.Name print(f"Total number of presidents: {len(president_names)}") president_states = df_states["Birth State"] print(f"Total states: {len(president_states)}") df = pd.DataFrame({"name":president_names, "states":president_states}) # changing type df.name = df.name.astype(str) df.states = df.states.astype(str) # removing whitespaces df['states'] = df['states'].apply(lambda x: x.strip()) # removing quotes df.states = df.states.apply(lambda x: x.replace('"',"")) df.name = df.name.apply(lambda x: x.replace('"',"")) return df`

We also change the types of the columns to be able to use it later.

## Finding Common Ground

Now, we start by writing a function that can find all the common states.

• We start by creating a map of state and name
• We also create a reverse index for the same
• We use the collections. Counter class to get the most common count and find the state using the reverse lookup index

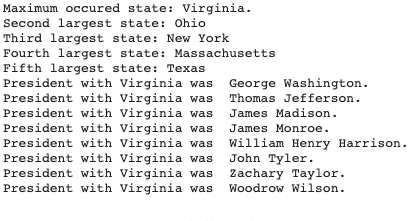

• We find the top 5 states and print it
`def common(show_counter=False, show_prez=False): """ Find the common data points in the dataset """ from collections import Counter mapping_state_name = {state:name for state,name in zip(df['states'].unique(), df['name'].unique())} df['states'] = df['states'] counter = Counter(df['states'].values) counter_vice_versa = {counter[key]: key for key in counter.keys()} max_counter = max(counter) count = sorted(counter.values()) second_largest_count = count[-2] print(f"Maximum occured state: {max_counter}.") print(f"Second largest state: {counter_vice_versa[second_largest_count]}") print(f"Third largest state: {counter_vice_versa[count[-3]]}") print(f"Fourth largest state: {counter_vice_versa[count[-4]]}") print(f"Fifth largest state: {counter_vice_versa[count[-5]]}") # presidents with the max_counter if show_prez: for name, state in zip(df['name'], df['states']): if state == max_counter: print(f"President with {max_counter} was {name}.") if show_counter: print(counter.keys())common(False, True)`

## Another way of finding common ground using a matrix-based approach

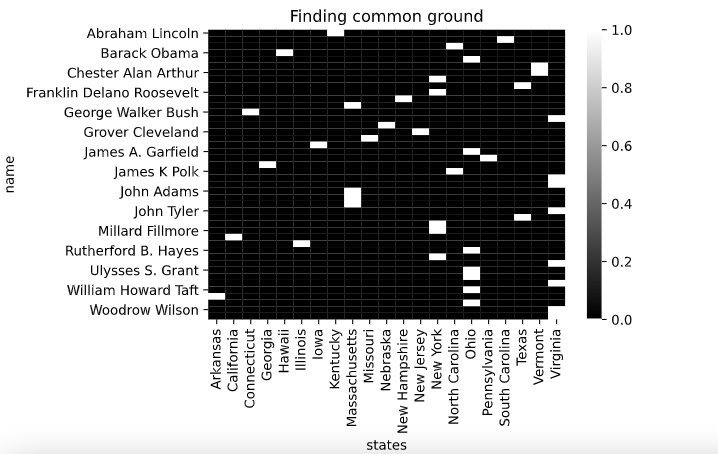

We also use a different technique to get the common states. We plot a heatmap to get the results in a visually appealing way.

`matrix_based = df.groupby("name")['states'].value_counts().unstack().fillna(0)sns.heatmap(matrix_based, vmax=1, vmin=0, cmap="gray")plt.title("Finding common ground")`
• Here you can see, for every president in a particular state, we have 1.0, and if a president is repeated, then we have two or 1s in a column
• This is a nice representation of how the presidents are distributed statewide
• This heatmap shows that values that are 0 have black color and white denotes 1.0

## Further analysis using data from another source

We will be using data from the CDC for each state to find some interesting insights.

`def load_data_from_cdc(save=False): """ Load data from CDC """ # reading the html table at index 0 df_states_fact = pd.read_html("https://www.cdc.gov/nchs/fastats/state-and-territorial-data.htm") # changing column (for join) df_states_fact['states'] = df_states_fact['State/Territory'] # removing old column df_states_fact.drop(columns=['State/Territory'], inplace=True) merged = pd.merge(df, df_states_fact) # Save the csv if save: merged.to_csv(index=False) merged.Births = merged.Births.astype(float) merged['Fertility Rate'] = merged['Fertility Rate'].astype(float) merged['Death Rate'] = merged['Death Rate'].astype(float) return mergeddf_merged = load_data_from_cdc()`

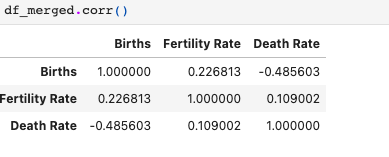

• The Correlation matrix does not show much of a relationship between the data points.

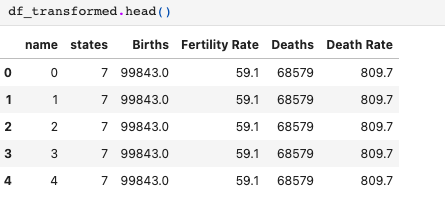

• Let’s try to change the name and states into numeric values and then try to perform correlation
`def apply_transformations(df: pd.DataFrame): """ Apply transformation on states and name """ # mapping of states and names mapping_states = {state: index for index, state in enumerate(df['states'])} mapping_name = {name: index for index, name in enumerate(df['name'])} df.states = df.states.apply(lambda x: mapping_states[x]) df.name = df.name.apply(lambda x: mapping_name[x]) return dfdf_transformed = apply_transformations(df_merged)`

## Some interesting plots

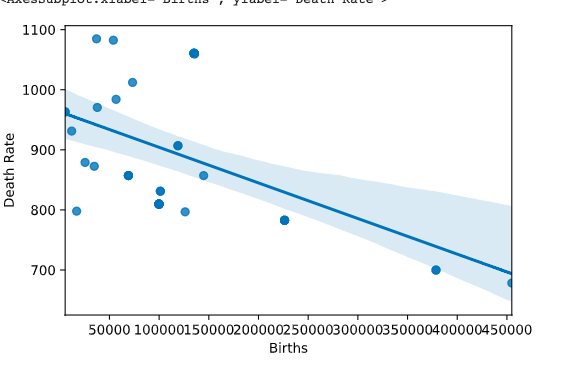

Let us plot some interesting datapoints

## Plotting maps

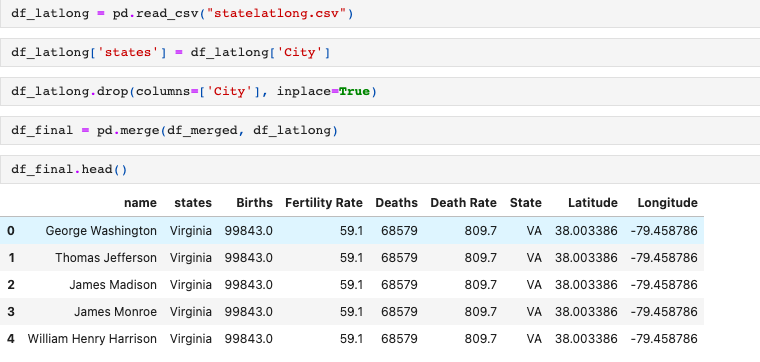

To better understand the data, let us plot a map with all the marked presidents. To solve this, we combine a latitude and longitude dataset with our US Presidents dataset.

`map_osm = folium.Map(width=500,height=500,location=[37.0902, -95.7129], zoom_start=3)df_final.apply(lambda row:folium.CircleMarker(location=[row["Latitude"],  row["Longitude"]]).add_to(map_osm), axis=1)`

We then plot our map using Folium

## Conclusion

• On analyzing the data, we found some very fascinating insights
• We tried to combine data from different sources to get our answers
• We used different ways to visualize our data
• We found the most common states
• We could have performed better if we had access to a wide variety of data about the state, such as education, income, etc
